DOUBLE HUNG

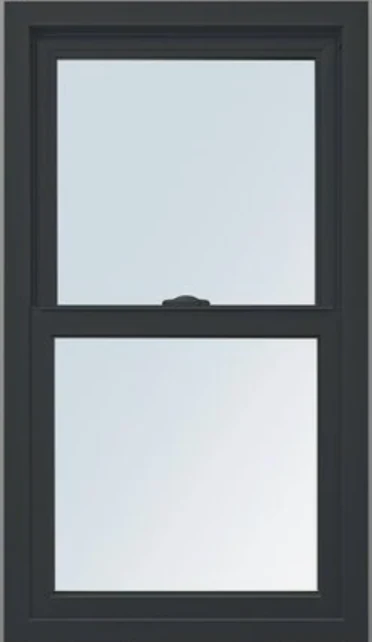

70 Double Hung Window

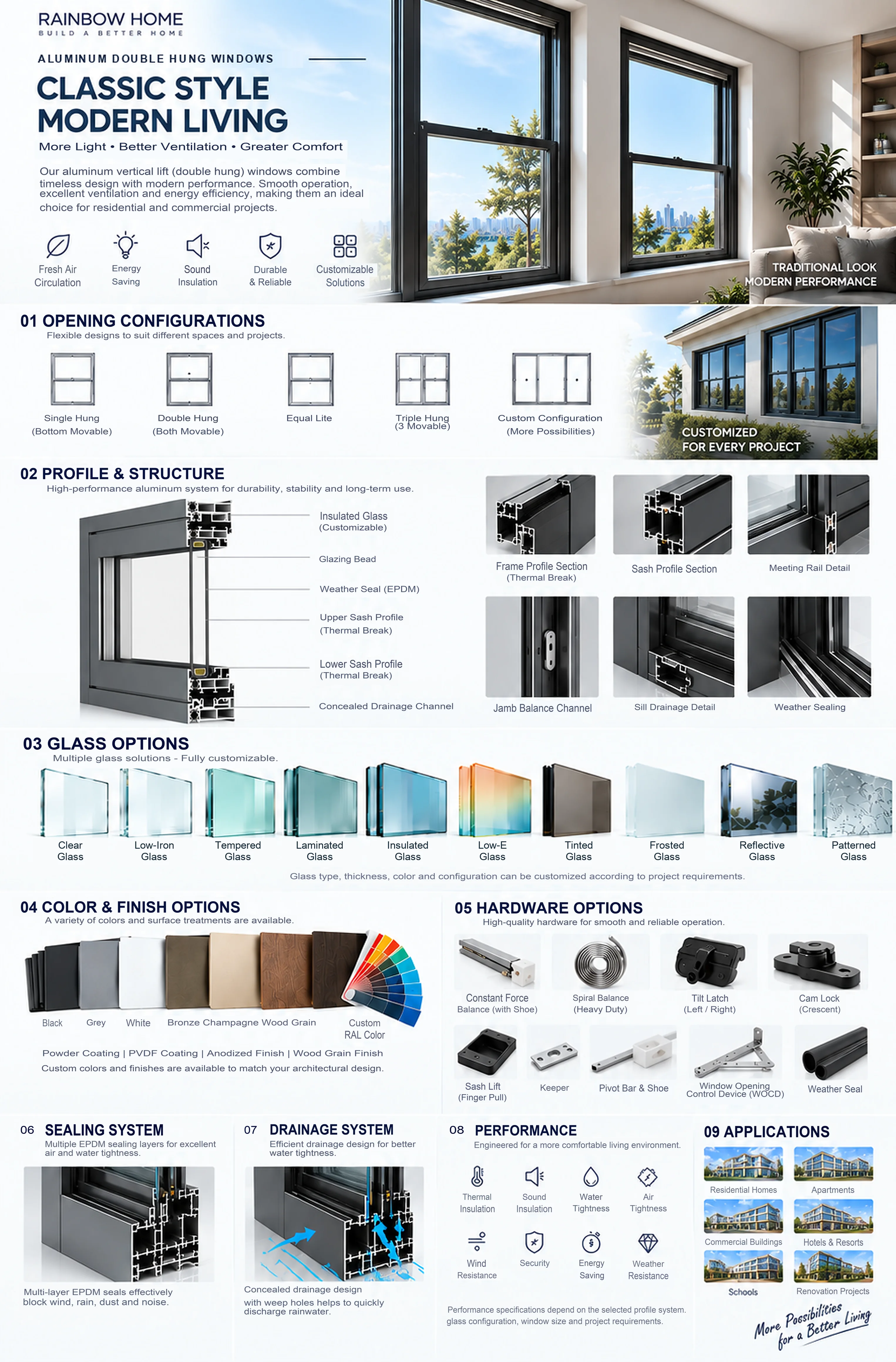

Product details — text version
Classic style. Modern living.
More light · Better ventilation · Greater comfort. Double hung windows combine vertically moving upper and lower sashes with a traditional appearance.
01Opening configurations

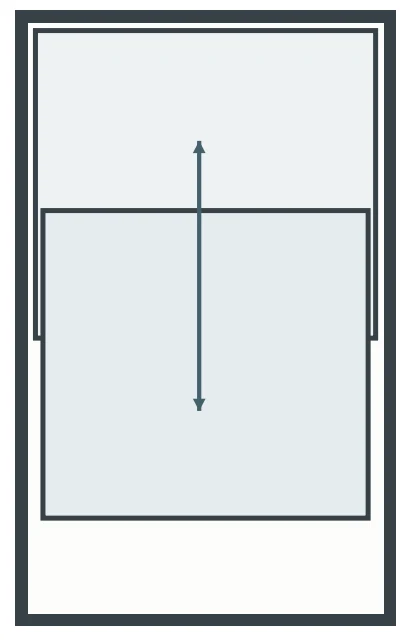

Single hung (bottom movable), double hung (both movable), equal lite, triple hung (three movable) and custom configuration references.
02Profile & structure
Insulated glazing, glazing bead, EPDM weather seal, upper and lower sash profiles and concealed drainage channel. The detail views show frame and sash sections, meeting rail, jamb balance channel, sill drainage and weather sealing.
03Glass options
Clear, low-iron, tempered, laminated, insulated, Low-E, tinted, frosted, reflective and patterned glass. Glass type, thickness, colour and configuration can be customized according to project requirements.
04Color & finish options
Black, grey, white, bronze, champagne, wood grain and custom RAL colours. Powder coating, PVDF coating, anodized finish and wood grain finish are coordinated with the architectural design.
05Hardware options
Constant force balance with shoe, spiral balance, left/right tilt latch, crescent cam lock, sash lift, keeper, pivot bar and shoe, window opening control device and weather seal.
06Sealing system
Multiple EPDM sealing layers around the frame and glass support air and water tightness and help reduce wind, rain and noise transmission.
07Drainage system
Concealed drainage channels and weep holes guide rainwater away from the frame. Coordinate the drainage detail with the installation conditions.
08Performance
Thermal insulation, sound insulation, water tightness, air tightness, wind resistance, security and weather resistance. Performance specifications depend on the selected system configuration and project requirements.
09Applications
Residential homes, luxury villas, apartments, hotels and resorts, commercial buildings and renovation projects.
Series models & product views3 views
