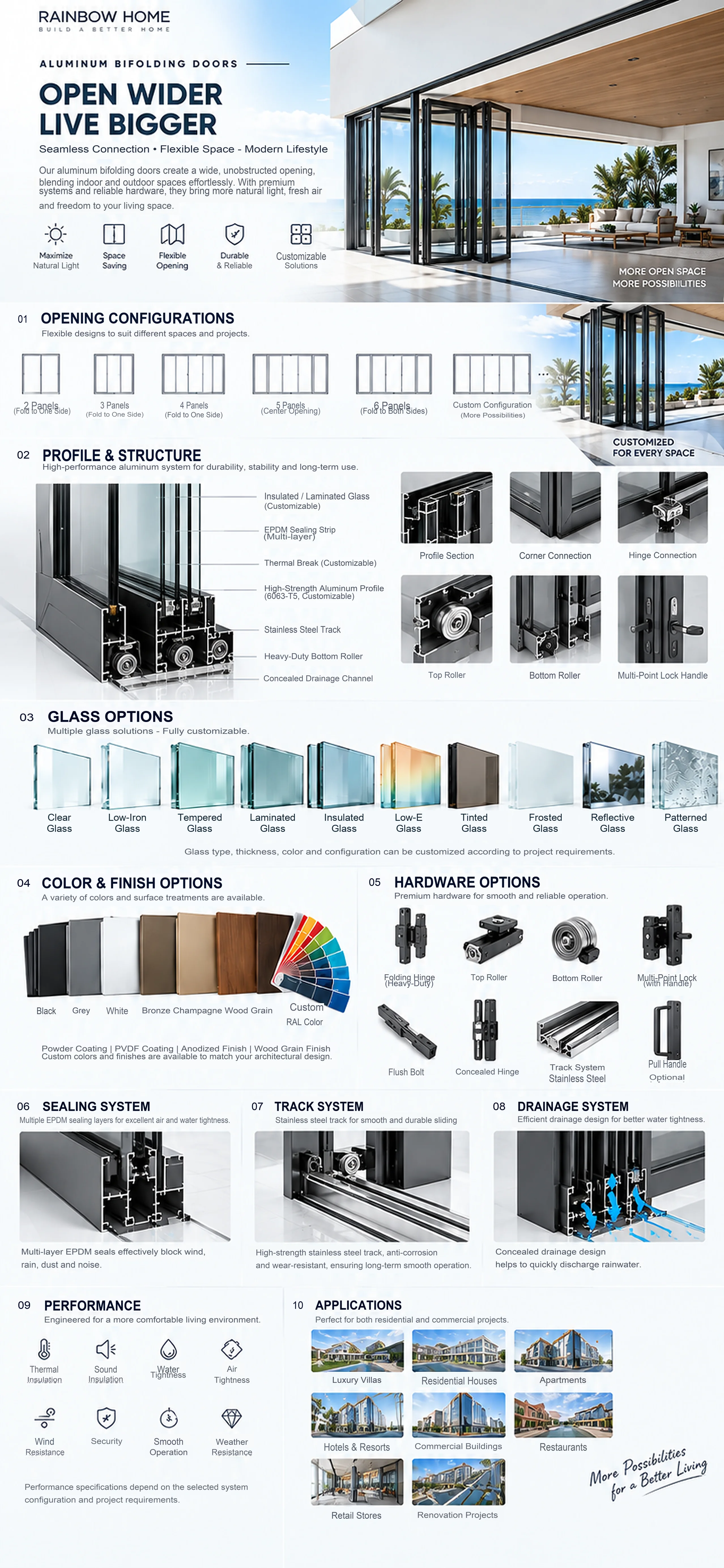

BIFOLD

73 Folding Series

Product details — text version

Open wider. Live bigger.

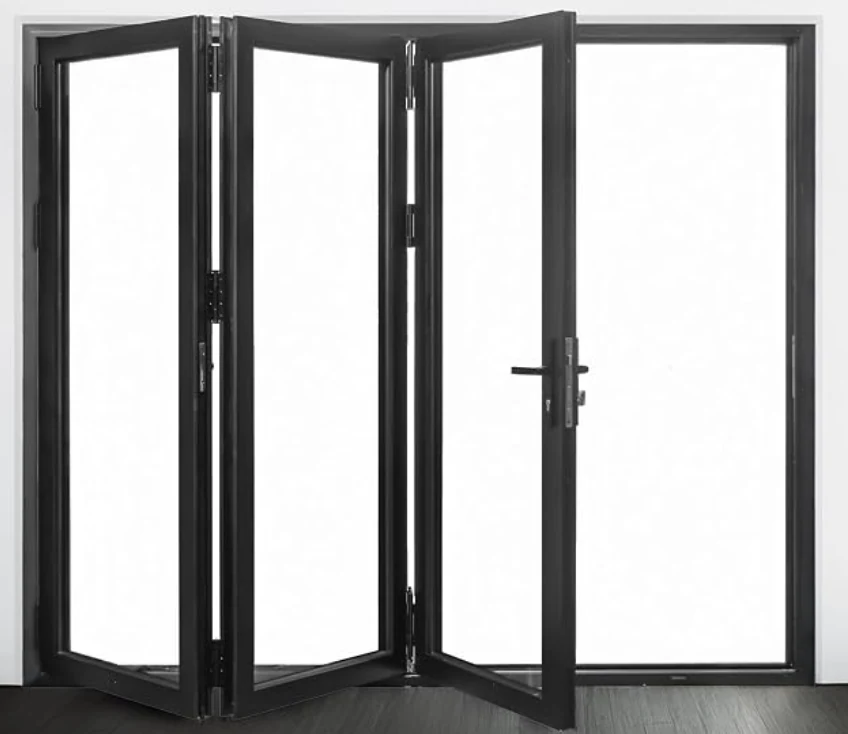

Seamless connection · Flexible space · Modern lifestyle. Folding panels create a wide opening between indoor and outdoor spaces.

01Opening configurations

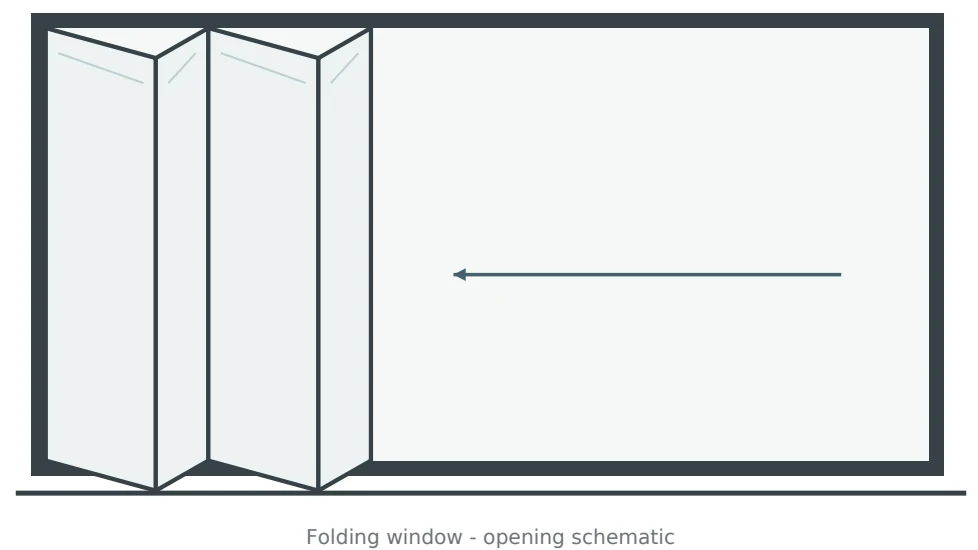

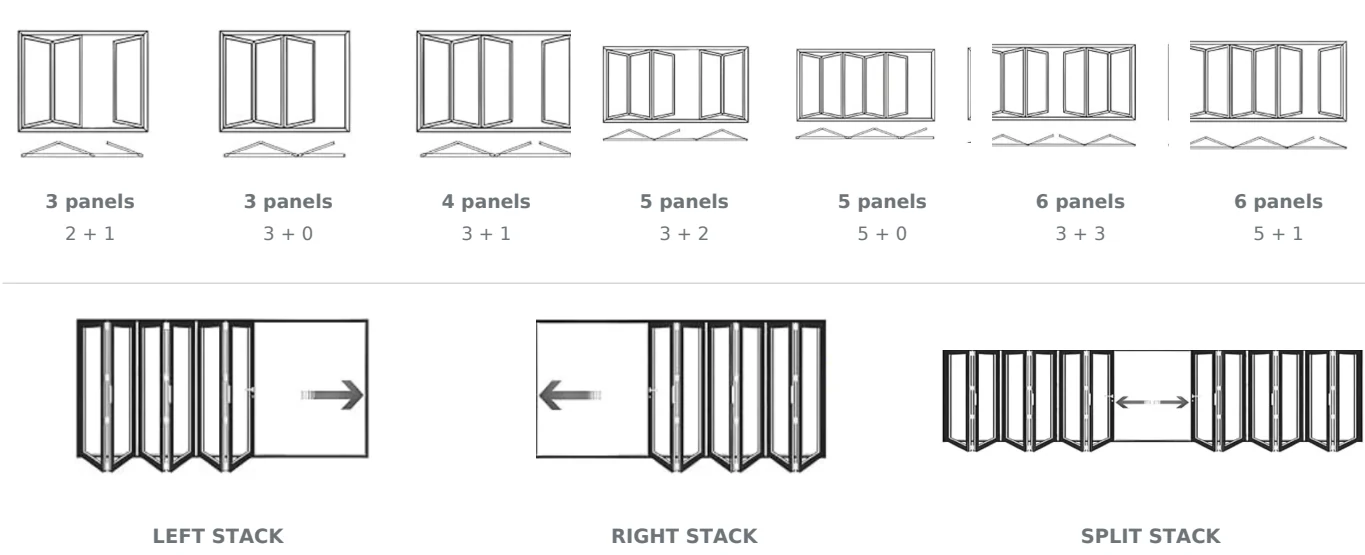

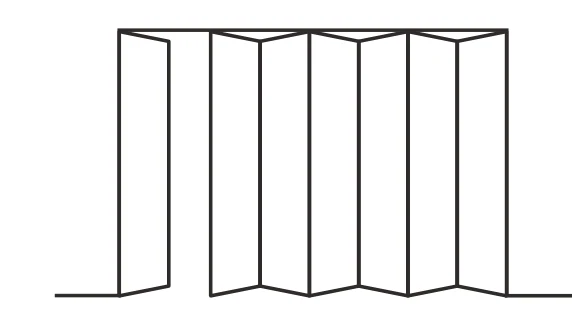

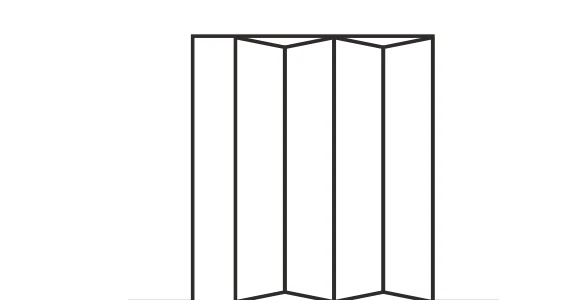

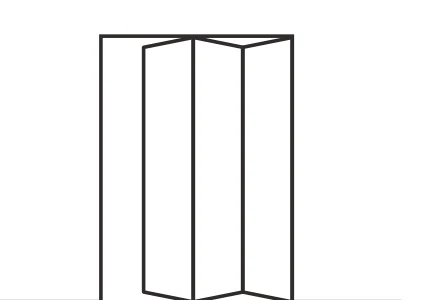

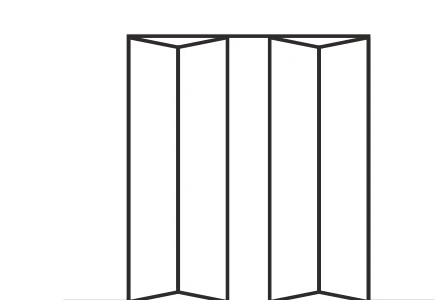

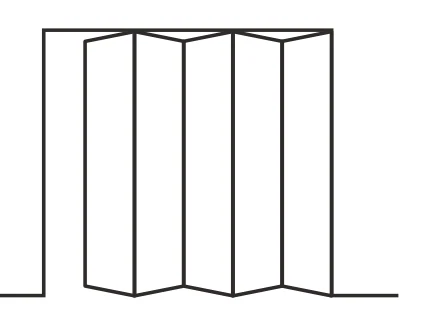

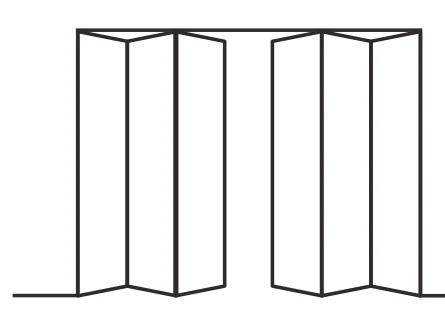

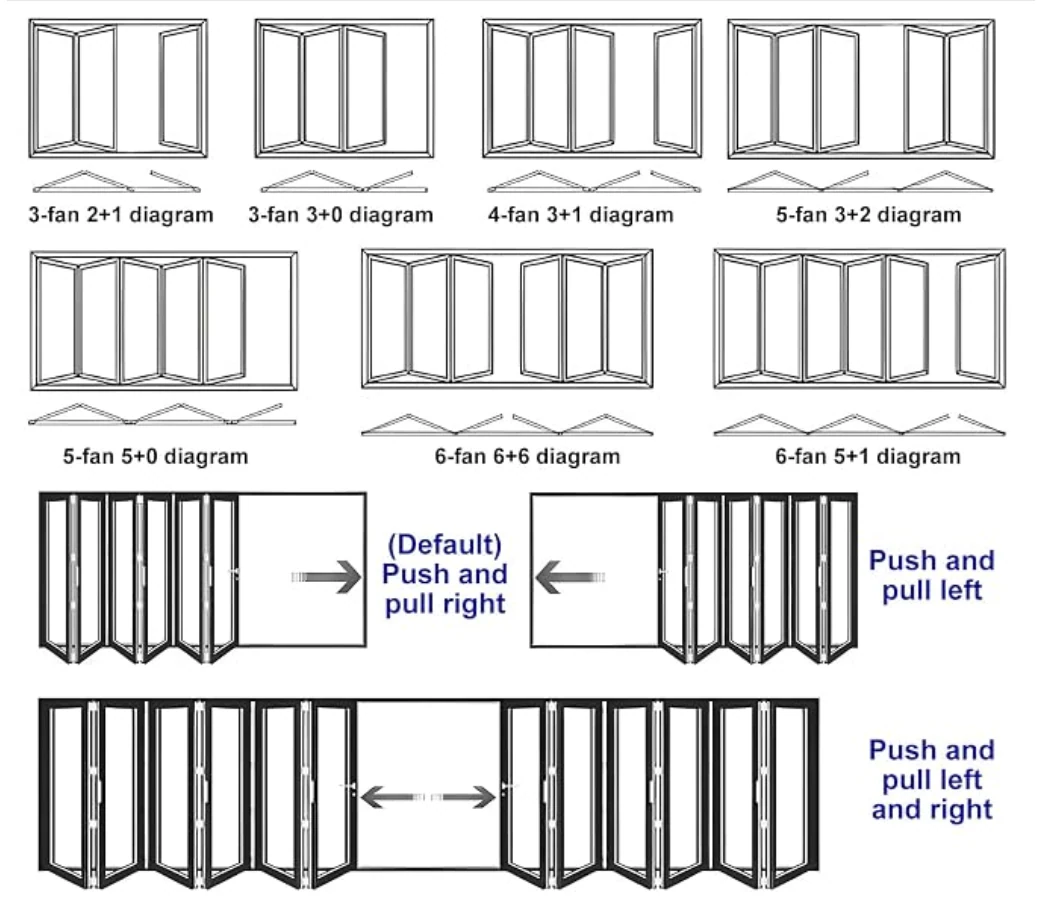

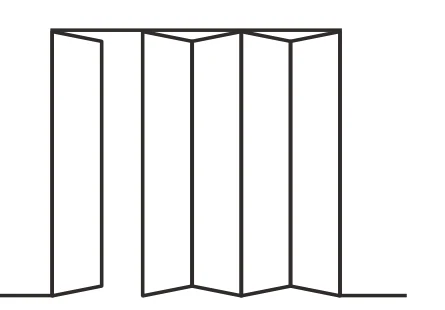

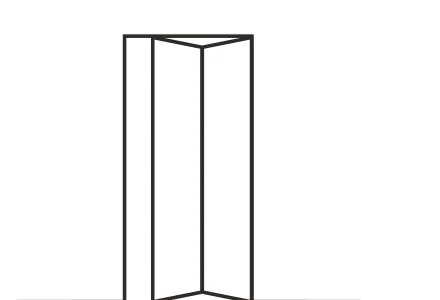

2, 3 or 4 panels folding to one side; a 5-panel centre opening; 6 panels folding to both sides; and custom configurations.

02Profile & structure

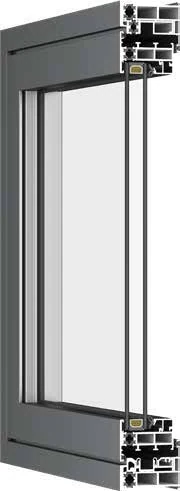

Insulated or laminated glazing, multi-layer EPDM seals, optional thermal break, aluminum profiles, stainless steel track, bottom rollers and concealed drainage. Detail views include hinge connections, top and bottom rollers and the locking handle.

03Glass options

Clear, low-iron, tempered, laminated, insulated, Low-E, tinted, frosted, reflective and patterned glass. Glass type, thickness, colour and configuration can be customized according to project requirements.

04Color & finish options

Black, grey, white, bronze, champagne, wood grain and custom RAL colours. Powder coating, PVDF coating, anodized finish and wood grain finish are coordinated with the architectural design.

05Hardware options

Heavy-duty folding hinge, top roller, bottom roller, multi-point lock with handle, flush bolt, concealed hinge, stainless steel track and optional pull handle.

06Sealing system

Multiple EPDM sealing layers around the frame and glass support air and water tightness and help reduce wind, rain and noise transmission.

07Track system

Stainless steel tracks with top and bottom roller coordination support smooth panel movement. Confirm the track arrangement for the opening and panel weight.

08Drainage system

Concealed drainage channels and weep holes guide rainwater away from the frame. Coordinate the drainage detail with the installation conditions.

09Performance

Thermal insulation, sound insulation, water tightness, air tightness, wind resistance, security and weather resistance. Performance specifications depend on the selected system configuration and project requirements.
